698 - 2700 MHz 8dbi Vertical Polarized 3G 4G LTE WIFI Outdoor Omni directional Antenna

Product Categories

Shenzhen AMEISON Communication Equipment Co.,Ltd.

Contact Now

Name: 698 2700 MHz 8dbi Vertical Polarized 3G 4G LTE WIFI Outdoor Omni directional Antenna
Brand: AMEISON
Price: 1 USD

Brand Name : AMEISON

Model Number : AMXF-7027-8

Certification : ISO 9001: 2008

Place of Origin : China

MOQ : 100

Price : EXW Price

Payment Terms : TT,Paypal,Western Union

Supply Ability : 500,000 Pieces per Month

Delivery Time : 10-20 working days

Packaging Details : bubble PP bag or EPE/inner box/master carton(safe export packaging) or others

Frequency range（MHz） : 698-960/1710-2700

Bandwidth（MHz） : 262/990

Gain（dBi） : 8

VSWR : ≤2.5/1.5

Polarization : Vertical

Lightning protection : DC Ground

Input connector type : SMA Male or Requested

Name : 4G LTE omni antenna

Contact Now

698 - 2700 MHz 8dbi Vertical Polarized 3G 4G LTE WIFI Outdoor Omni directional Antenna

Feature:

Exquisite appearance

Optimized dimension

Full day working

Wide frequency band,

low standing wave,strong anti-interference ability

Application:

GSM/CDMA/PCS/3G/WLAN/WIFI/4G/LTE system

Vehicle mobile communication device

AMXF-7027-8 Electrical Specifications
Frequency range(MHz)	698-960 / 1710-2700
Bandwidth(MHz)	262 / 990
Gain(dBi)	6 / 8
Half-power beam width(°)	H:360 V:25
VSWR	≤2.5/1.5
Input Impedance(Ω)	50
Polarization	Vertical
Maximum input power(W)	100
Lightning protection	DC Ground
Cable length	30cm
Input connector type	N female or Requested
Mechanical Specifications
Dimensions (mm)	Φ60*750
Antenna weight(kg)	1.5
Operating temperature(°c)	-40～60
Rated Wind Velocity(m/s)	60
Radome color	White
Mounting way	Pole-holding
Mounting hardware(mm)	￠35-￠50

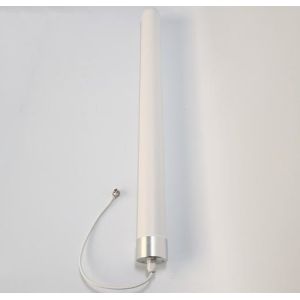

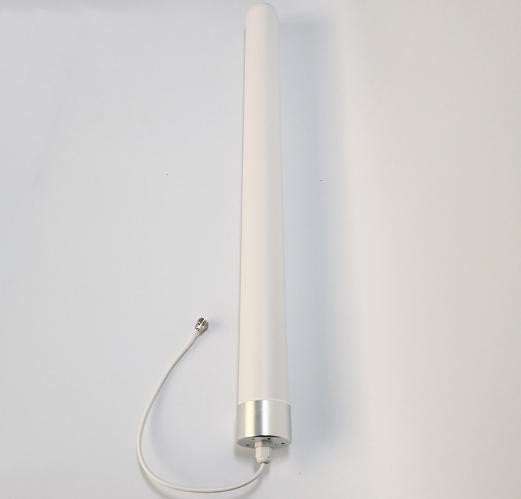

698 - 2700 MHz 8dbi Vertical Polarized 3G 4G LTE WIFI Outdoor Omni directional Antenna Images
